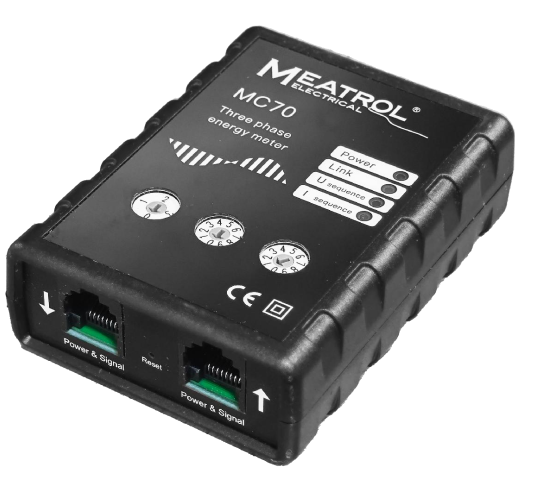

MC-70 Multi-Circuit Smart Meter

 For Power Analysis and Energy Consumption Monitoring

The MC70 is a Multi-Circuit smart meter that offers customizable features such as Rogowski coils and open-end voltage type CTs, allowing for non-invasive testing. This design simplifies testing procedures and saves on construction costs. Its integrated structure greatly reduces the likelihood of errors during wiring and also contributes to a smaller meter size. The meter can be interconnected with others through an RJ45 interface, making it ideal for monitoring multiple circuits simultaneously.

Application: Power analysis and energy consumption monitoring

Characteristics: Multi-Circuit Monitoring: Supports up to 247 circuits interconnected simultaneously.
Design: Plug-and-Play Design: No screwing terminal connections; all wiring operations are designed for plug-and-play convenience.
Expandable: RJ45 port for high-speed transmission, supporting customization of multiple protocols.

Features

Medium distance multi-point measurement Solutions:
• Scattered Installation with Centralized Reading
• Analyzes and records overall energy usage.
• 0.5s level measurement accuracy.
• Customizable current sensor measurement range, with no theoretical maximum limit.
• Capable of measuring active power (P) and reactive power (Q), as well as power factor.

Multi-cannel Electric Power Quality Analysis Solution:
• Capable of measuring multiple electrical parameters on phases A, B, and C, including current, voltage, power factor, harmonics, power, and energy. Provides data to assist in electricity management decision-making.

Customizable Current Sensor and Voltage Sampling Method:
• Supports Rogowski coils and open-end CTs, with customizable current sensors.
• Different voltage sampling methods are available, including magnetic suction probes, voltage clamps, and piercing heads, among others.

Specifications
Mounting type: multi-circuit
Current sensor: Rogowski coil Voltage-output current transformer
Benefit: Wide current range, measurement without dismantling
Display screen: none
Dimension: L*W*D： 7.5*3.7*2.4CM

Current Measurement
Channel input voltage range: 0-900mVAC peak, 636 mV RMS
Measurement range: (different current sensors have different measuring ranges)
Rogowski coil:
50mV/kA@50Hz(0-12000A),@60Hz(0-10000A)
85mV/kA@50Hz(0-7000A),@60Hz(0-6000A)
100mV/kA@50Hz(0-6000A),@60Hz(0-5000A)...
Voltage-output CT: 0~99999A

Voltage Measurement
Measurement range: 0~600VAC
Maximum measured value: 720VAC

Communication
RS485 Communication: One RS485 communication interface. Interface type: two-wire half-duplex Communication baud rate:
2400bps~38400bpsProtocol: Modbus-RTU

Power Supply
Power supply: 5VDC

Maximum power consumption: ≤3.5VA
