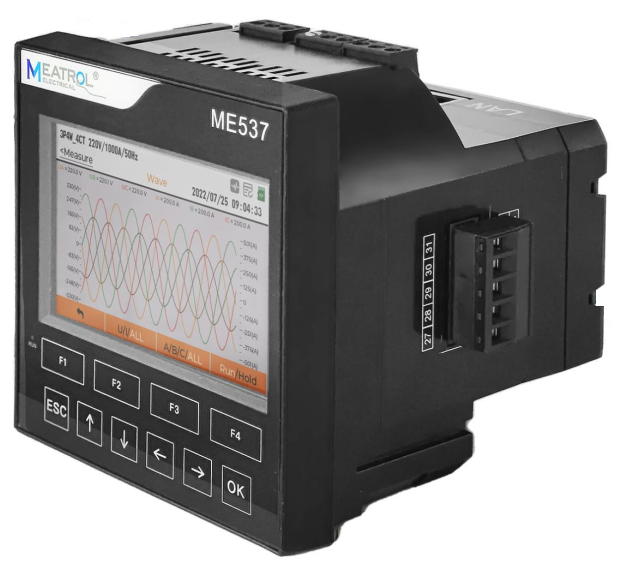

ME537  Multifunction Three-Phase Power Quality Analyser





ME537 Multifunction Three-Phase Power Quality Analyser. Meatrol South Africa























Applications

Power analysis, Power measurement, Power quality analysis



ME537 three phase power quality analyser, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.


Support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, power, energy, and power quality parameters including harmonic, unbalance degree, voltage swell and voltage dip, etc.
In addition to the measurement function, ME537 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.
Standard RJ45 Ethernet and RS485 communication interfaces, compatible with various configuration systems through standard Modbus TCP and Modbus RTU protocols, transmit real-time electrical parameters collected by the front-end to the system data centre.



Specifications
Record Parameters: Data recorder, Event, Waveform recording, record management.
Measurement: interface, voltage & current, power, energy, harmonic, waveform, phasor, unbalance, demand, record parameters, storage capacity.
Power grid: frequency, voltage, current & voltage transformer, zero drift suppression, harmonic, event, demand, CO2 emission, K-factor.
Power supply: 85-305VAC/100 - 430VDC. Max. power consumption 5VA.
Voltage access; Direct access connected through voltage transformer.
System: system information, communication, clock, screen, keyboard, language.
User parameters settings: user information, phase sequence name & colour.
Communication: RJ45-Ethernet Modbus-TCP, RS485 Modbus-RTU.
Operation Interface topology: setup, measure, record.
Current sensors: Rogowski coil, Voltage-output current clamp.
Storage: TF card, 32GB.
Data export: U disk export (U disk file is FAT32 system).
Display: 3.5inch, IPS display, resolution ration:480*800.
Size: 96*96*94mm.
Working environment: Temperature-20℃ ～+55℃ , Humidity below 90% RH.
Measurement category: CAT III 600V.
Protection: IP30.
