ME237 Smart Panel Meter
ME237 Smart Panel Meter

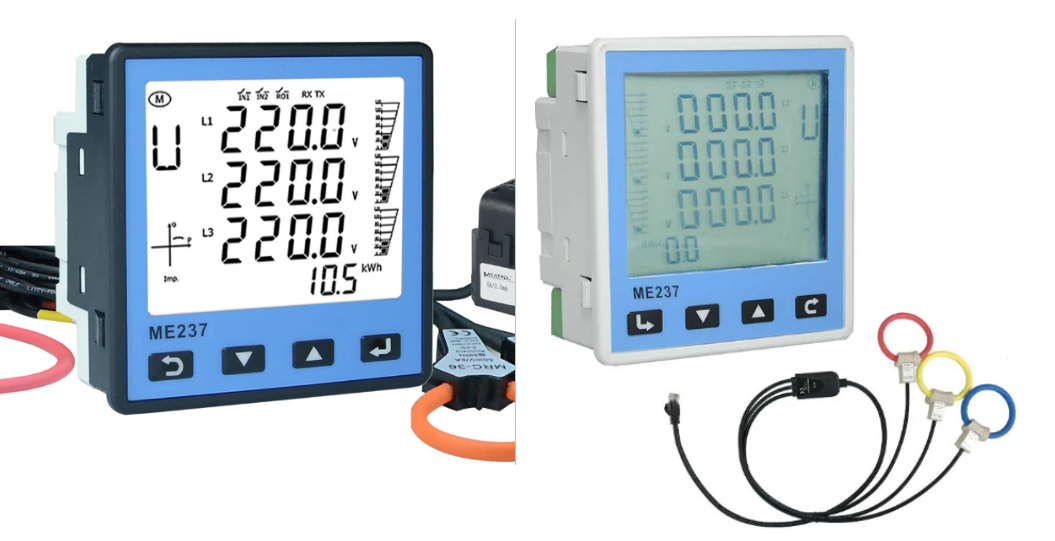

The ME237 3-Phase Multifunction Panel Meter is a versatile device designed for measuring and monitoring various electrical parameters in three-phase electrical systems. Overall, the ME237 appears to be a versatile and comprehensive panel meter designed for measuring and monitoring electrical parameters in various three-phase electrical systems. Its compatibility with other products from the same brand and support for different current sensors make it suitable for a range of applications in the electrical and energy monitoring field.
Product Characteristics:
Type: 96*96 Panel Meter
Poles description: 3PH3W, 3PH4W (Supports both three-phase three-wire and three-phase four-wire systems)
Application: Current, Voltage, Power, Energy & Harmonic Measurement
Display Screen: 3.8 inch LCD segment code display screen
Weight: 259g
Dimensions: LWD: 8.18.13CM
Color: White & Black
Features:
Real-time data display: Provides real-time monitoring of electrical parameters.
Accuracy: Offers precise measurements for reliable data.
Certification: Likely certified for compliance with industry standards.
Various power output connections: Can connect to various power sources.
Selectable operational interface displays: Allows users to customize the display as needed.
Supports:
3PH3W system: Compatible with three-phase three-wire systems.
3PH4W system: Compatible with three-phase four-wire systems.
Measures:
Current: Measures electrical current.
Voltage: Measures electrical voltage.
Power Factor: Measures power factor, indicating the efficiency of power usage.
Harmonic: Measures harmonic content in the electrical signal.
Energy: Measures electrical energy consumption.
Other electrical parameters of L1, L2, and L3: Likely includes additional parameters relevant to the three-phase system.
Communication Interface:
RS485 communication interface: Supports communication via the standard Modbus RTU protocol, allowing integration with various configuration systems and data centers.
Same-Brand Compatibility:
Compatible with and supports same-branded products such as the ME237C (1/5A CTs), the ME237V (external 333mV CTs), and the ME237R (Flexible Rogowski Coil). This suggests a level of expandability and compatibility within the product line.
Add-On Products:
The ME237 is available with a conventional CT interface or a direct-connect Rogowski Interface. This provides flexibility in choosing the type of current sensors for your specific application.
